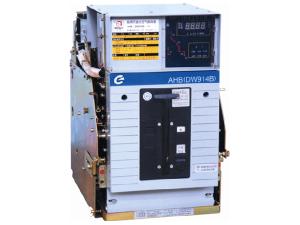

The DW914B air circuit breaker is used in marine power distribution system with the rated current of 630 to 6300 A, the rated frequency of 50 or 60 Hz, as well as the rated voltage of AC 660 V or less and DC 440V or less. It offers protection against AC overload, under-voltage and short circuit as well as DC under-voltage and short circuit. Also, this low voltage circuit breaker applies to the infrequent conversion of the lines under normal working conditions.
Features
1. Compact structure, small size, light weight, universal parts, high breaking capacity
2. Certified to the national 3C standard, classification society standard and military test standard, etc.
3. Withdrawable design for ease of use and maintenance
4. A wide selection of closing operations (motor storage, manual storage and electromagnet)
5. Various tripping functions secure the equipment and human beings.
6. Provide a diverse range of attachments upon request
This air circuit breaker is an improved product produced on the basis of the technologies introduced from Japan Terasaki Electric Co., Ltd.
Technical Parameters of DW914B Air Circuit Breaker| Model | |
|
|
|
||||||
| Standard Type | For Power Distribution (With Fault Display Function) | Long Delay | Setting Current Ir1(A) Delay Time T1(s) |
Io×(0.8~0.9~1.0~1.10) adjustable continuously | ||||||
| ≤Ir1×105% not operate; ≥Ir1×120% operate | ||||||||||
| Ir1×600%, 5~30s adjustable continuously (Ir1×150%, 120~180s; Ir1×200%, 60~120s) | ||||||||||
| Recommended to choose: 5, 10, 15, 20, 25, 30s; error: ±15% | ||||||||||
| Short Delay | Setting Current Ir2(A) Delay Time T2(ms) |
Io×(4~5~6~7~8~9~10) adjustable continuously; error: ±15% | ||||||||
| ≥Ir2×1.2, 120~420ms adjustable continuously | ||||||||||
| Recommended to choose: 120, 170, 220, 270, 320, 370, 420ms | ||||||||||
| Instantaneous | Setting Current Ir4(A) | Io×(4~5~6~7~8~9~10~12~14~16) adjustable continuously; error: ±20% | ||||||||
| For Generator Protection | Long Delay | Setting Current Ir2(A) Delay Time T1(s) |
Io×1.0, 1.05, 1.10, 1.15, 1.25; error: ±5% | |||||||
| Ir1×120% (or115%), 15~60s adjustable continuously | ||||||||||
| Recommended to choose: 15, 20, 25, 30, 35, 40, 45, 50, 55, 60s; error: ±15% | ||||||||||
| Short Delay | Setting Current Ir2(A) Delay Time T2(ms) |
Io×(2.0~2.5~3.0~3.5~4.0) adjustable continuously; error: ±10% | ||||||||
| ≥Ir2×1.2, 120~420ms，adjustable continuously | ||||||||||
| Recommended to choose: 120, 170, 220, 270, 320, 370, 420 ms | ||||||||||
| Pre-alarm | Setting Current IP(A) Delay Time TP(s) |
Ir1×(0.82~0.96) adjustable continuously; error: ±5% | ||||||||
| Ir1×120% (or 115%), 5~10s | ||||||||||
| Recommended to choose: 10s; error: ±15% | ||||||||||
| Electromagnetic Type | Instantaneous Setting Current (kA) | 3,5 | 5,7,5 | 7,5,10 | 7,5,10 | 7,5,10 | 10,15 | 15,20 | ||
| Error ±20% | 7，5 | 10 | 15 | 15,20, | 20,25 | 25 | ||||
| 10,15 | 15,20 | 15,20, | 20,25 | 25,30 | 30,40 | 30,40 | ||||
